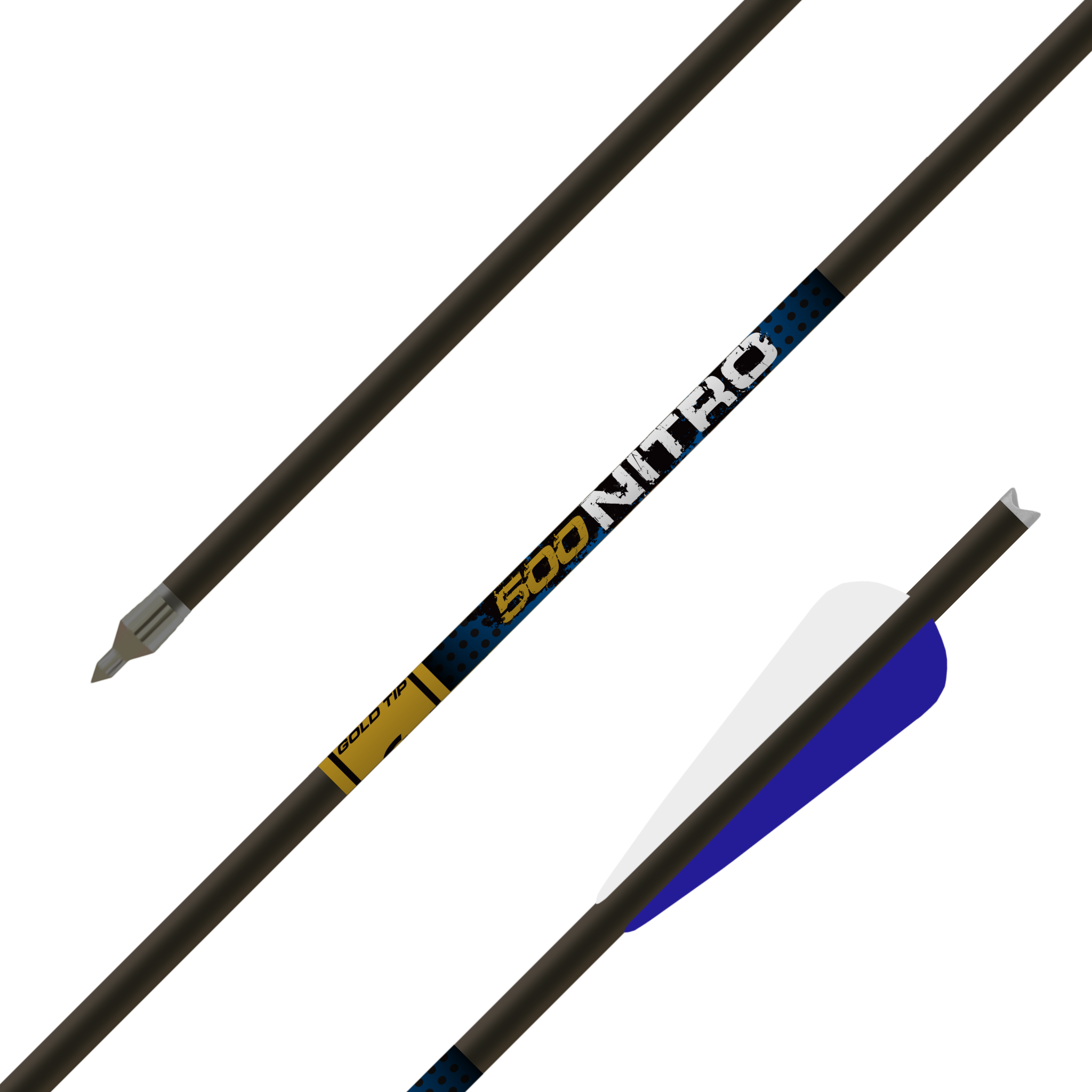

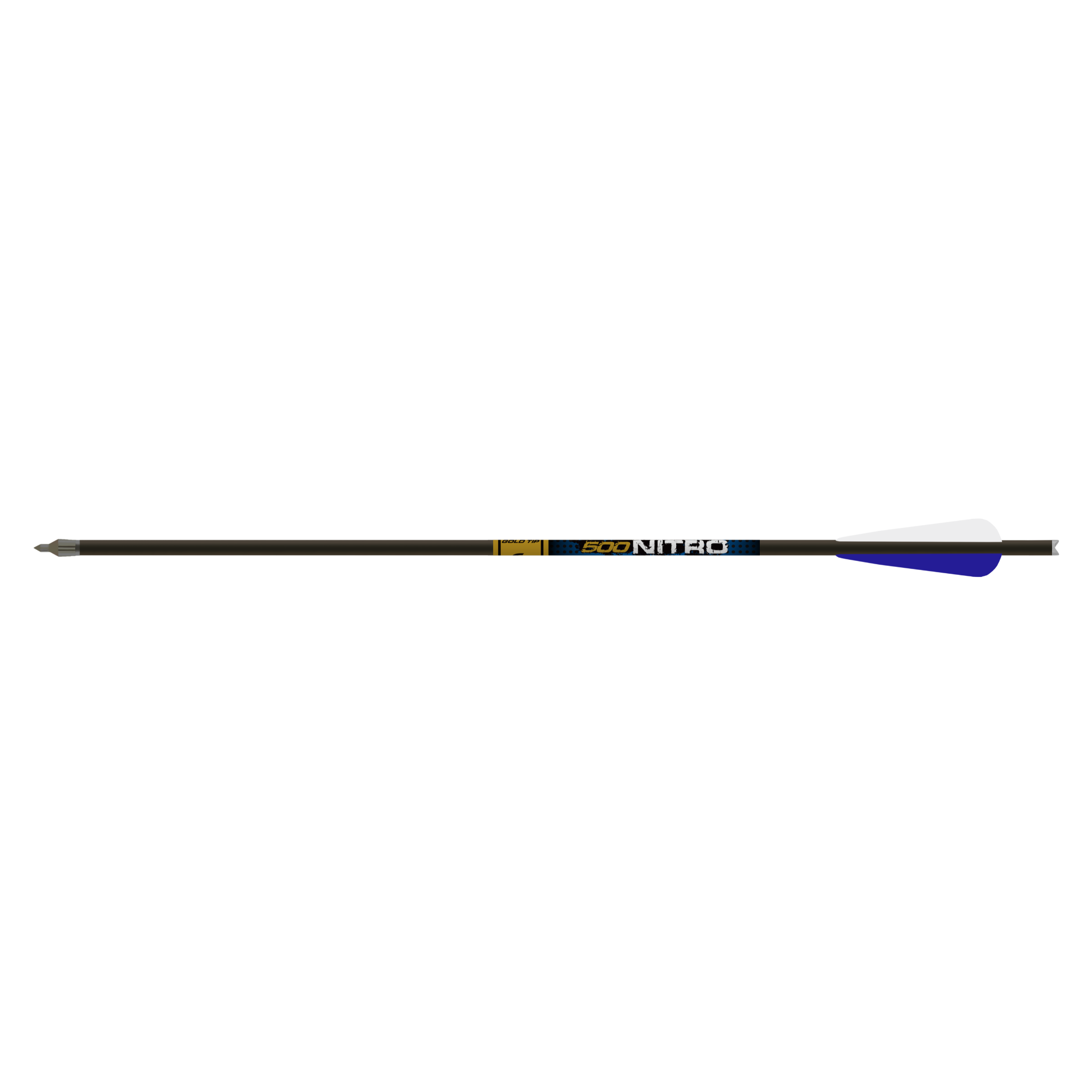

Nitro Crossbow Bolts .272

SKU: NI22MA46

Diameter (in): 0.272 ID

Straightness Tolerance (in): 0.005

Weight Tolerance: +/- 2 gr

Write a Review

The Nitro is a heavy hitter, designed for today's fastest and most powerful crossbows. Recommended for draw weights over 175 pounds, or bows that require a 500 grain weight-range bolt. Features Gold Tip's legendary 100% Carbon Technology for unmatched durability and straightness retention.

Included Components: Moon Nock & 60 Grain Insert

Regular price $69.99

Unit price / per

Shipping calculated at checkout.

Size22"

20" Variant sold out or unavailable 22" Variant sold out or unavailable

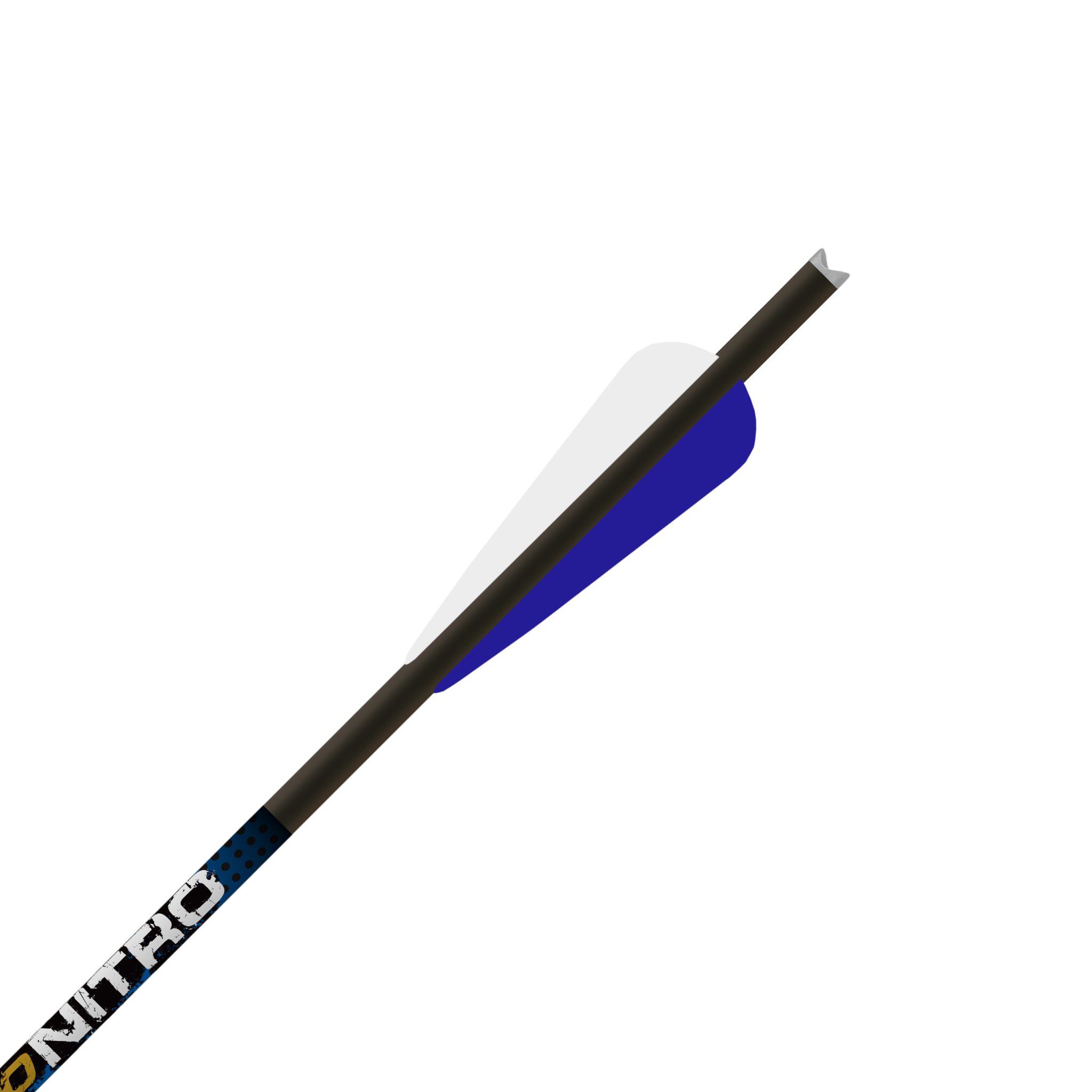

Fletch4" Duravanes

4" Duravanes Variant sold out or unavailable

Package Quantity6

6 Variant sold out or unavailable 72 Variant sold out or unavailable 6 Loose Variant sold out or unavailable

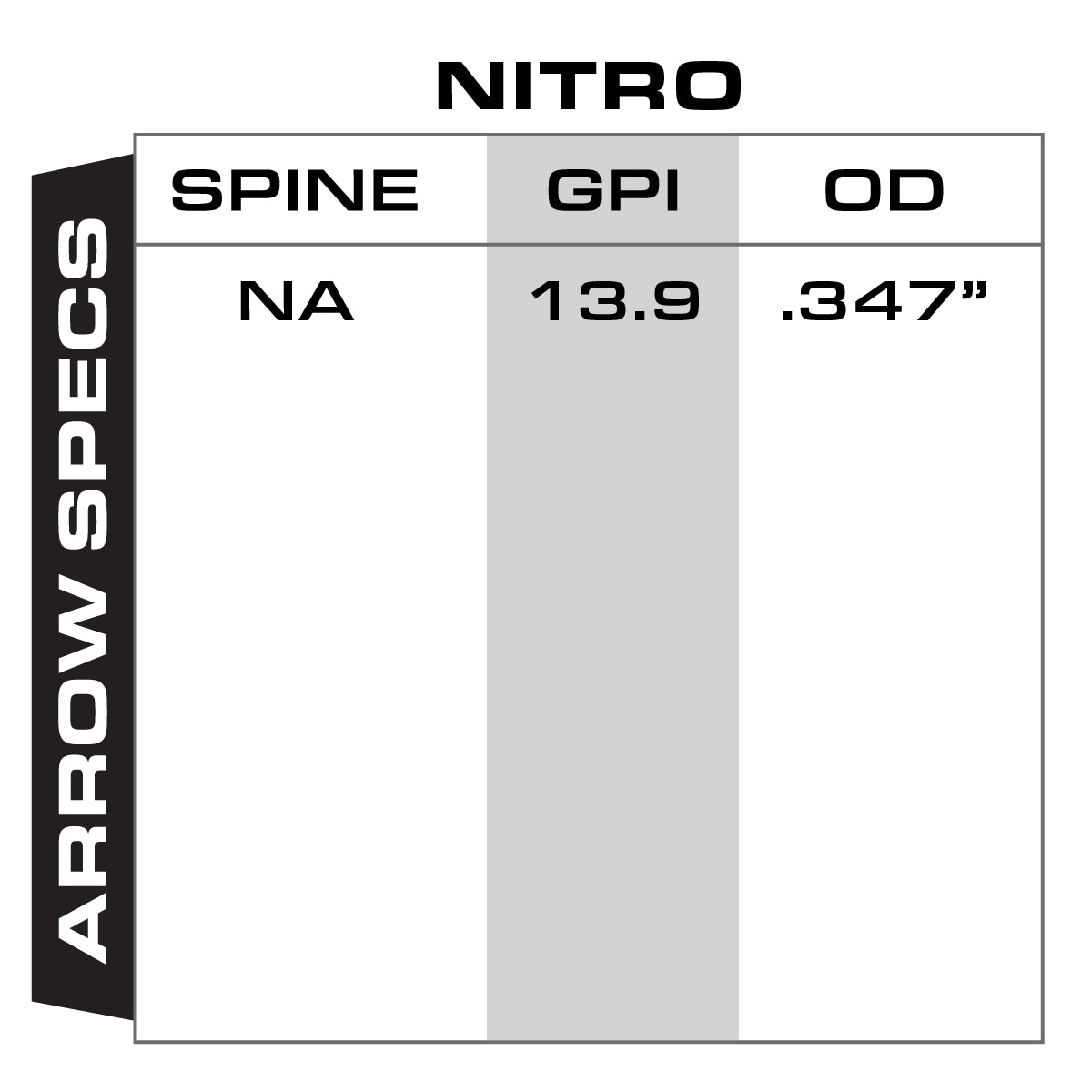

Technical Specs

Calculators

Select a calculator below to get started.

Kinetic Energy

Enter required information below to calculate your Kinetic Energy.

Arrow Weight (Grains)

Arrow Velocity (FPS)

Result: -

Arrow Weight & FOC (Forward of Center Balance)

Enter required information below to calculate your finished arrow weight and FOC.

FOC stands for Front of Center balance point. This measurement results from the relative weights of the components of your arrow (insert, point, fletching and nock). A properly balanced arrow measurement is 7%-15%.

Point Weight (Grains)

Insert Weight (Grains)

Insert Collar Weight (Grains)

Weight Screw Weight (Grains)

Shaft Weight (Grains per inch)

Shaft Length (Inches)

Wrap Weight (Grains)

Wrap Length (Inches)

Vane Weight Per (Grains)

Vane Length (Inches)

Number of Vanes

Bushing Weight (Grains)

Nock Weight (Grains)

Total Weight: -

FOC: -

Spine Selector

Use the Gold Tip spine selector tool to find out which arrow spine is best for your bow.

Arrow Selection Charts

Arrow length is measured from the throat of the nock to the end of the insert. If you are shooting a longer broadhead than field point, you may want to choose a slightly stiffer shaft.

Important: Please Read

*Point Weight = The total combined weight of point, insert, Ballistic Collar and FACT weight.

Step 1:

Find your draw and point weight in the chart.

Step 2:

Determine the length of your arrow by measuring from the throat of the nock to the end of the insert.

Step 3:

Find the correct group number in the shaft selection chart.

Step 4:

Find your appropriate spine selection for your bow and use the detail arrow specifications chart on the next page to see which shafts are available in your spine. Arrow length is measured from the throat of the nock to the end of the insert. If you are shooting a longer broadhead than field point, you may want to choose a slightly stiffer shaft.

Compound Bows - With Finger Release

When shooting finger release, start by selecting an arrow 2 boxes to the weaker side (to the left). Start with the arrow 1” longer than you selected and cut it down 1/4” at a time until you have a perfectly tuned shaft using the bare shaft tuning method outlined in the back of the Gold Tip product catalog and the Arrow University section of the Gold Tip website (goldtip.com).

Traditional Recommendations

If you are shooting a recurve/longbow, first establish the draw weight of the bow at the length you draw it to. This is best accomplished by bringing the bow to full draw and having a friend mark the arrow where it intersects the outside of the riser. For either longbow or recurve, start with the arrow at least 1” longer than your desired finished arrow and cut the shaft down 1/4” at a time until you establish a perfect tune using the bare shaft tuning guide outlined in the back of the Gold Tip product catalog. You can use the Gold Tip weight system to fine tune the spine reaction and increase the mass weight of the arrow.
